Item |
VIN Breakpoint |
Part # |
Comments |
 |
|
|
|
|
|
1 |
Element - Air Cleaner |
1 -
Last sandcast frame (vin unknown) |
17211-300-020 |
Not used in France, Germany, Netherlands, ED |
|
|
|
|
|
|
|
1 |
Element - Air Cleaner |
3480 -
Last sandcast frame (vin unknown) |
17211-300-620 |
Used in France, Germany, Netherlands, ED. Believed more
restrictive |
|
|
|
|
|
|
|
|
|
|
| |
There are three types of “Sandcast” air cleaner cases. There are
both 2-hole and 3 - hole designs. The early sandcast air boxes
are held on to the frame by a bracket (stay) which attaches to
the air box top by 2 fixing points, whereas the later type has 3
fixing points. The 2 hole air box also has 2 variations. |
|
 |
|
|
| |

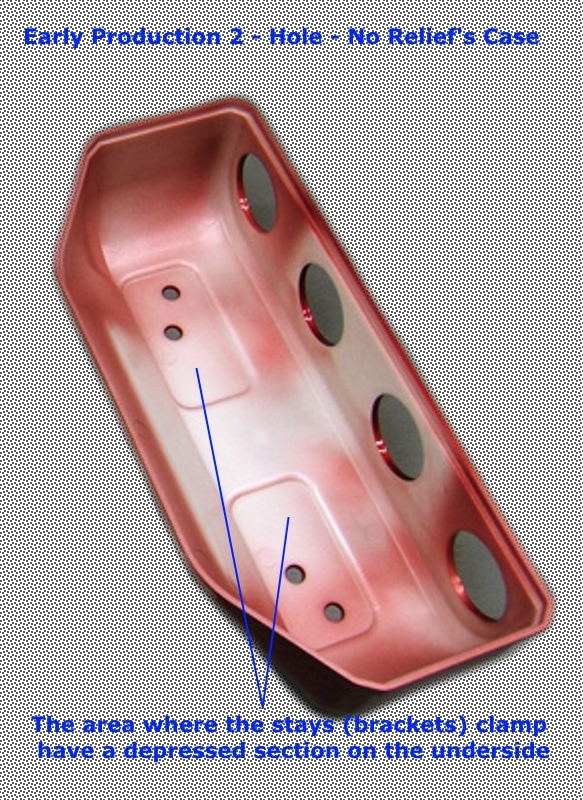

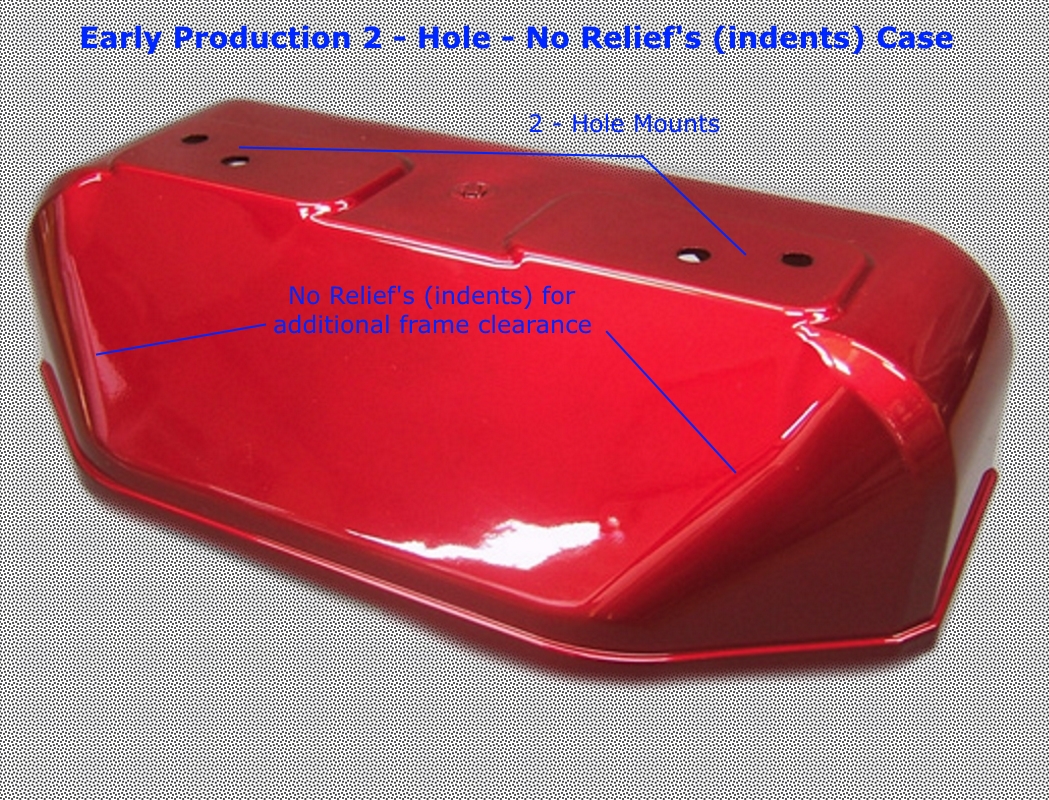

The "Early Production" 2 Hole air cleaner case has no "relief's"
or indents to provide clearance between the case and the frame
rails. In this case, clearance was limited resulting in cracked
cases. |
|
|
|
|
|
| |

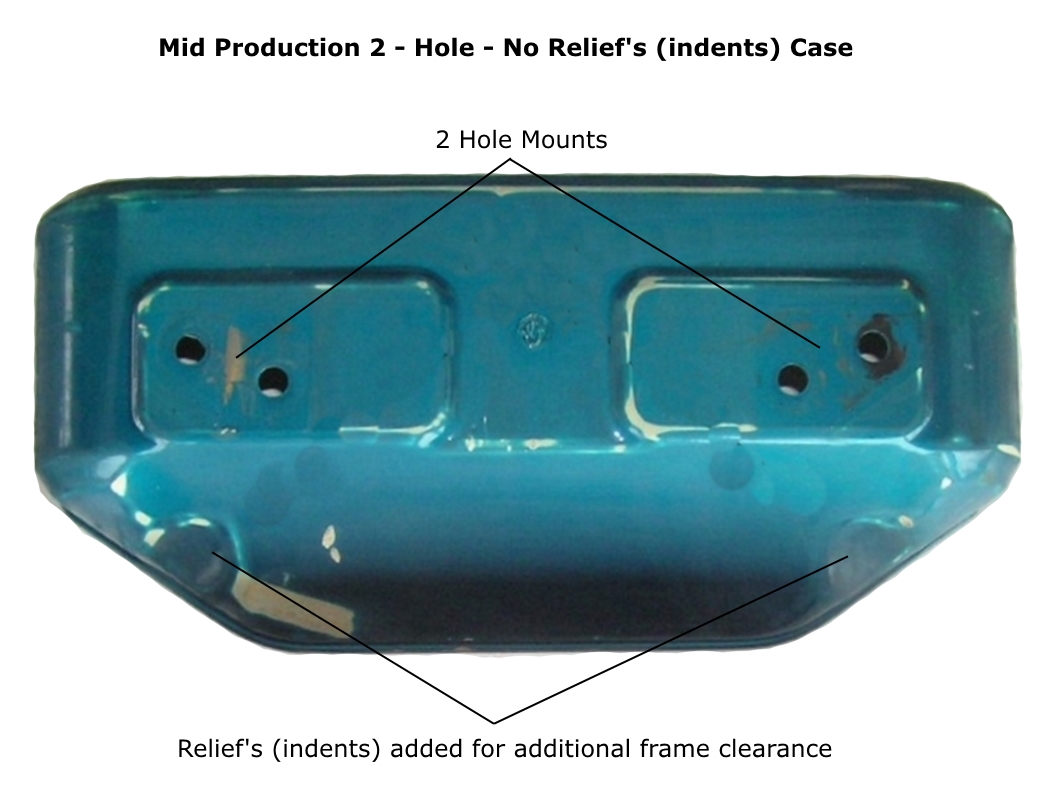

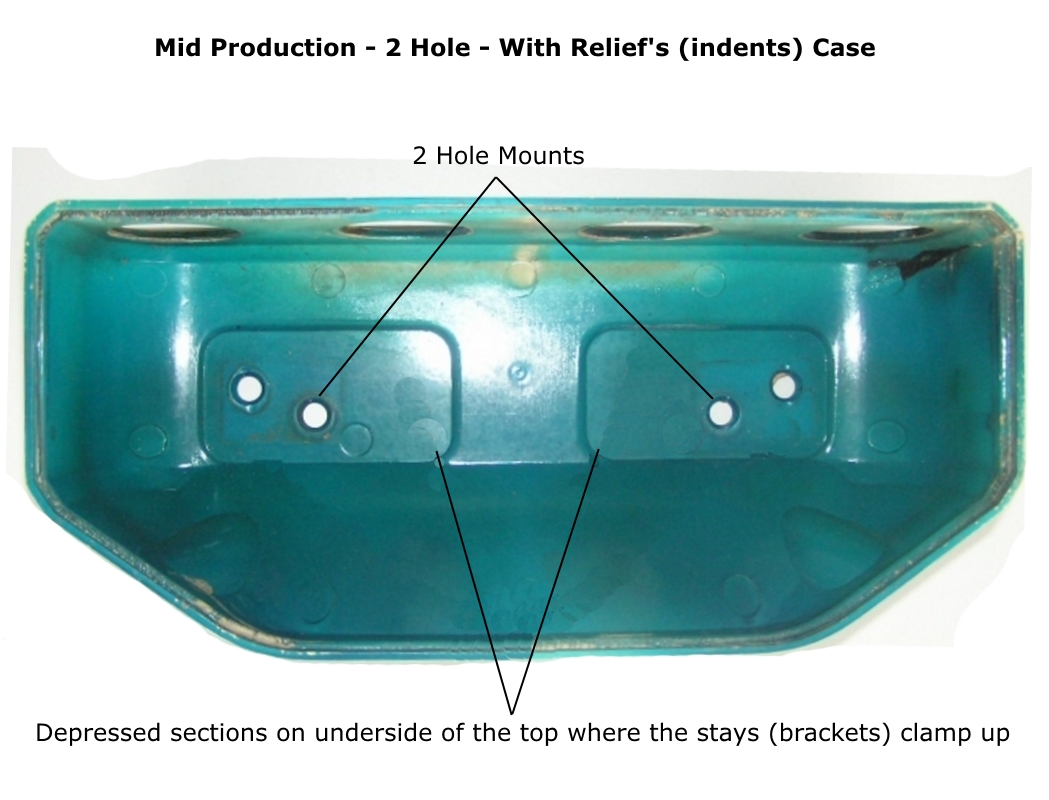

The "Mid Production" 2 - Hole air cleaner case did have
relief's, however they were not as wide and sweeping as the
later production relief's. Again, with the 2 - hole design and
early relief design, cracking was still an issue. |
|
|
|
|
|
| |

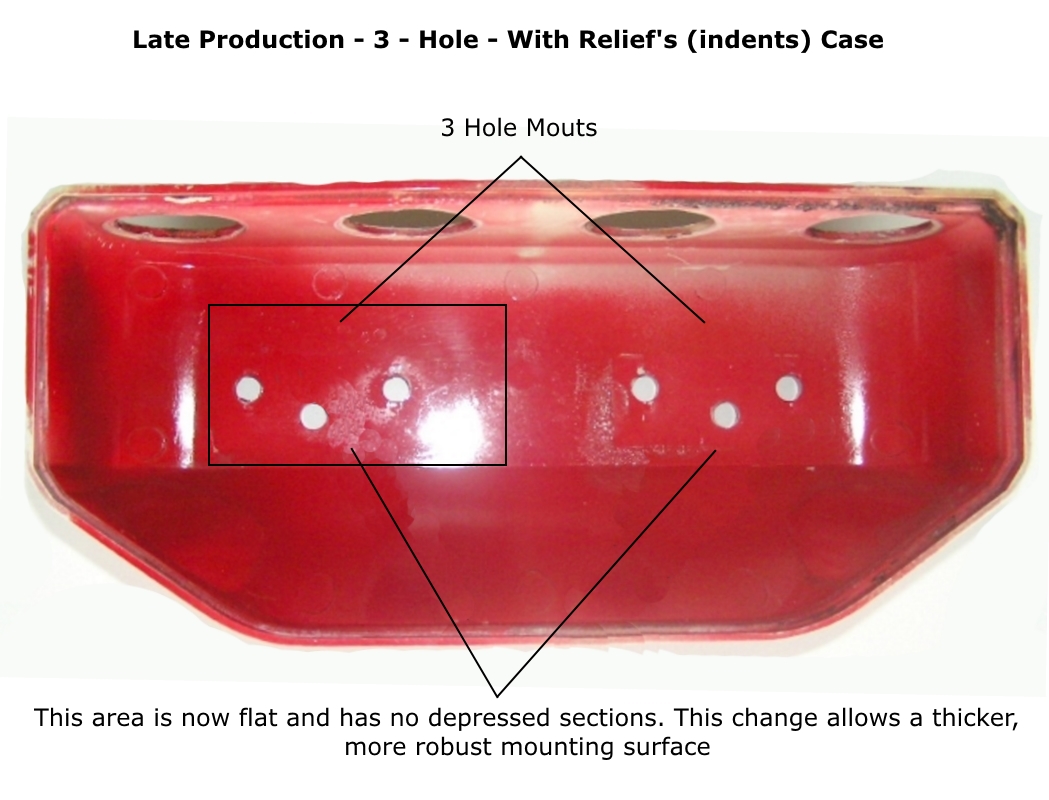

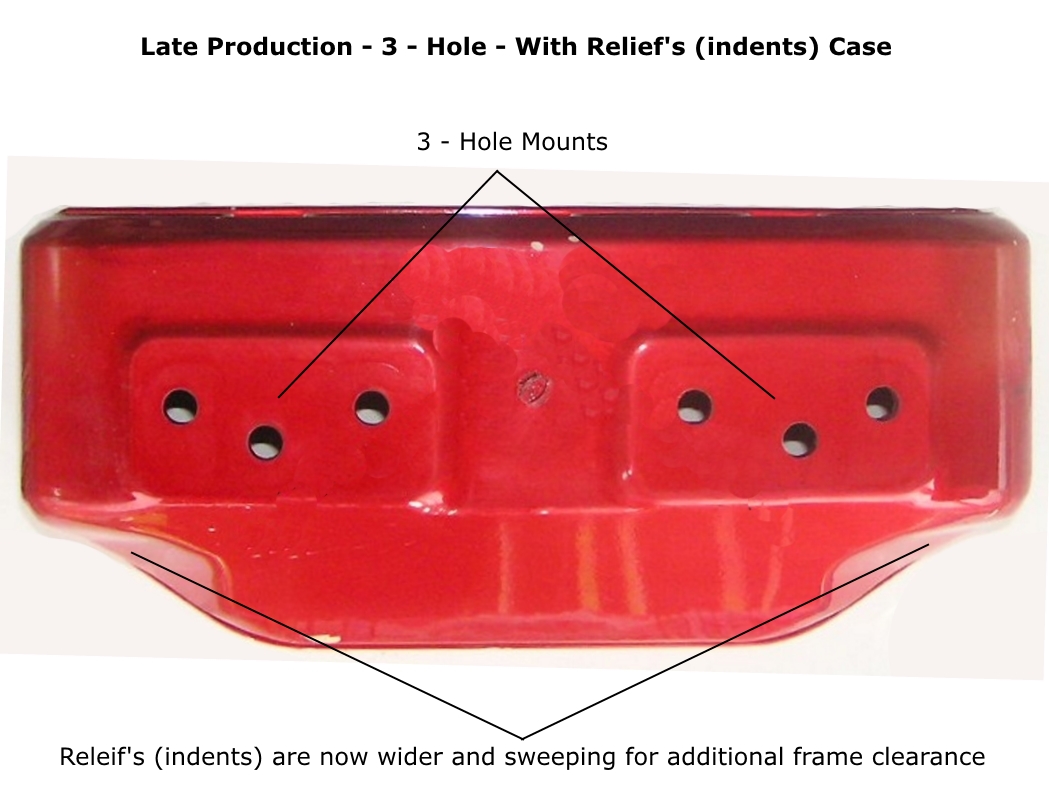

The late production 3 - hole air cleaner case the differences
are obvious. 3 - hole mounting configuration. Wider, more
sweeping frame relief's. No depressions on inside of case for
mounting brackets. (stays) There are differences in the "stays",
detailed lower in this section. This robust new design was less
prone to interference issues and cracking. |
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
Case, Comp, Air Cleaner |
1 - 673? |
17214-300-040AZ
17214-300-040CM |
Early 2 - Hole - No
Relief's |
|
|
|
|
|
|
|
2 |
Case, Comp, Air Cleaner |
674? - 4006 |
17214-300-040AZ
17214-300-040CM |
Mid 2- Hole mount with relief's. |
|
|
|
|
|
|
|
2 |
Case, Comp, Air Cleaner |
4007
- Last sandcast frame (vin unknown) |
17214-300-040AZ
17214-300-040CM |
Late 3 - Hole mount - With relief's |
|
|
|
|
|
|
|
 |
 |
|
Click Image to Zoom |
Click Image to Zoom |
|
|
|
|
 |
 |
|
Click Image to Zoom |
Click Image to Zoom |
|
|
|
|
 |
 |
|
Click Image to Zoom |
Click Image to Zoom |
|
|
|
|
|
|
|
|
3 |
Stay, right air
cleaner case |
1 - 4006 |
17215-300-010 |
Two mounting hole type |
|
|
|
|
|
|
|
3 |
Stay, right air
cleaner case |
4007 - Last sandcast frame (vin unknown) |
17215-300-020 |
Three mounting hole type |
|
|
|
|
|
|
|
4 |
Stay, left air
cleaner case |
1 - 4006 |
17216-300-010 |
Two mounting hole type |
|
|
|
|
|
|
|
4 |
Stay, left air
cleaner case |
4007 - Last sandcast frame (vin unknown) |
17216-300-020 |
Three mounting hole type |
|
|
|
|
|
|
|
5 |
Cover, air cleaner |
1 - Last sandcast frame (vin unknown) |
17231-300-020AZ
17213-300-020CM |
Lower airbox half, not used in France, Germany, Netherlands |
|
|
|
|
|
|
|
5 |
Cover, air cleaner |
3840 - Last sandcast frame (vin unknown) |
17231-300-620AZ
17231-300-620CM |
Lower airbox half used in France, Germany, Netherlands - believed to have different intakes to reduce noise |
|
|
|
|
|
|
| |
Rubber, case mount |
4007 - Last sandcast frame (vin unknown) |
17219-300-000 |
Fitted between three hole case and stay to reduce effects of vibration |
|
|
|
|
|
|
| |
Collar, case setting |
4007 - Last sandcast frame (vin unknown) |
17220-300-000 |
Only used on three hole case |
|
|
|
|
|
|
|
13 |
Screw, Pan |
1 - 4006 |
93500-06012 |
Two hole type case / stay screws, 12mm long |
|
|
|
|
|
|
|
13 |
Screw, Pan |
4007 - Last sandcast frame (vin unknown) |
93500-06020 |
Three hole type case / stay screws, 20mm long now to allow for case mounting rubber? |
| |
|
|
|
|
