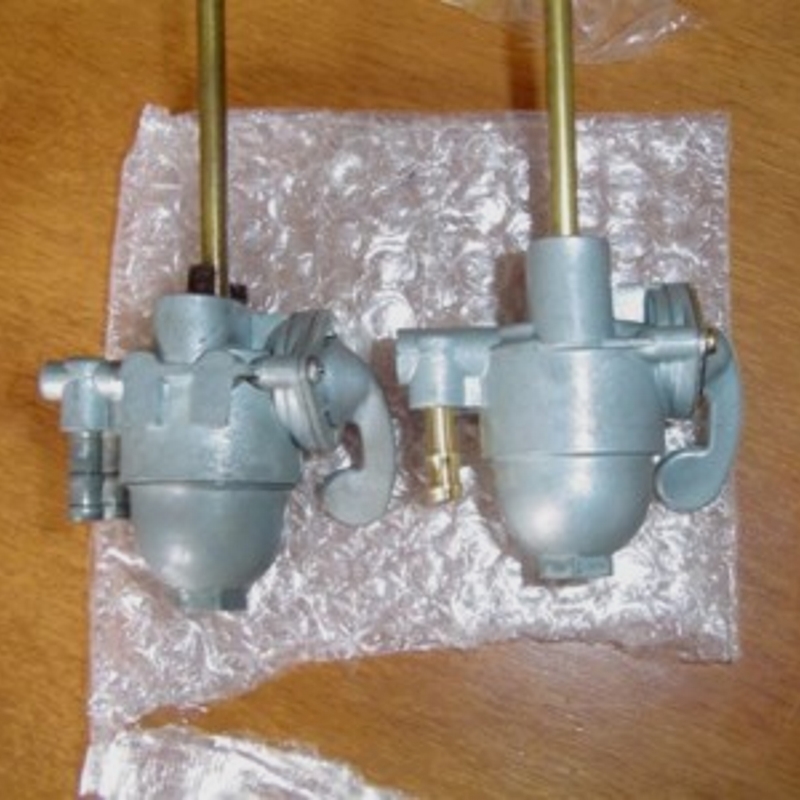

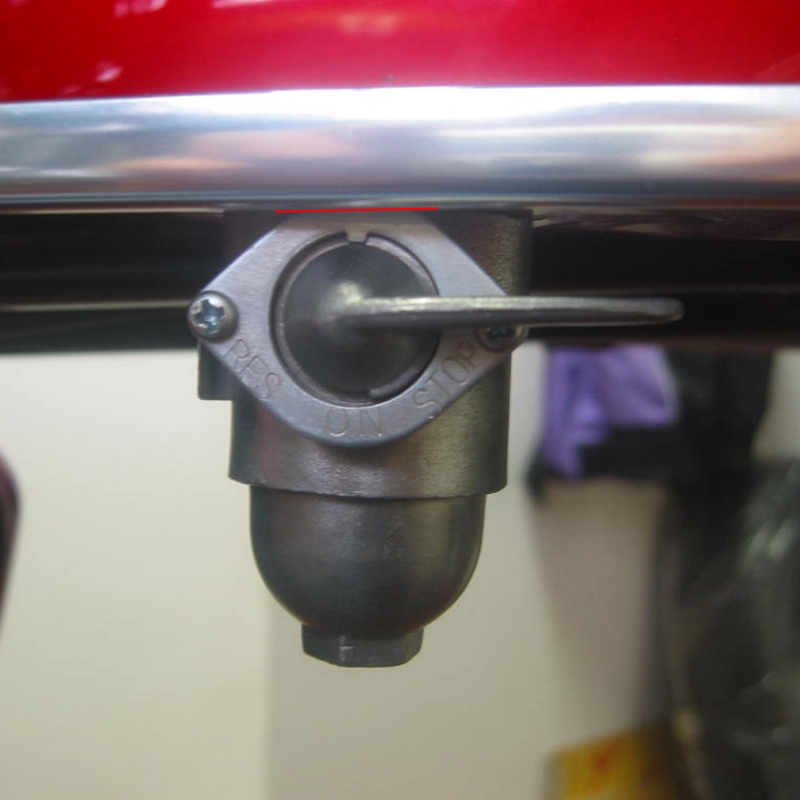

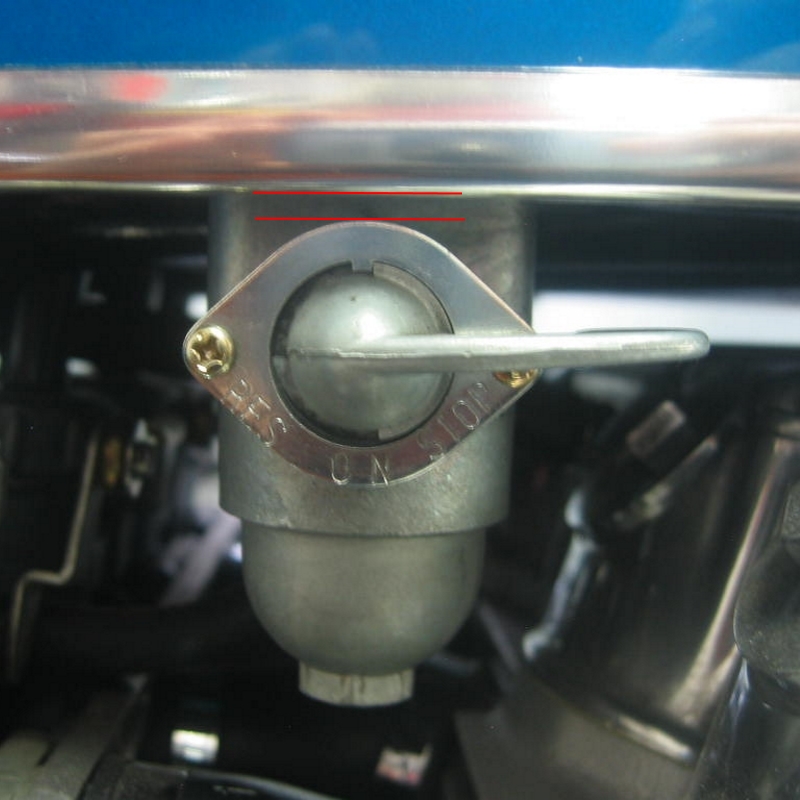

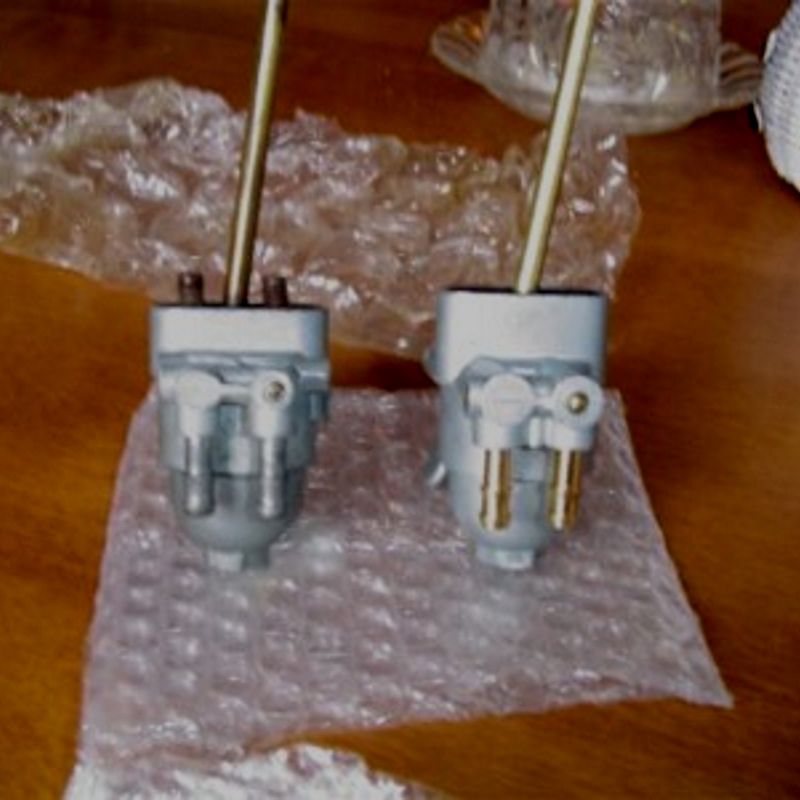

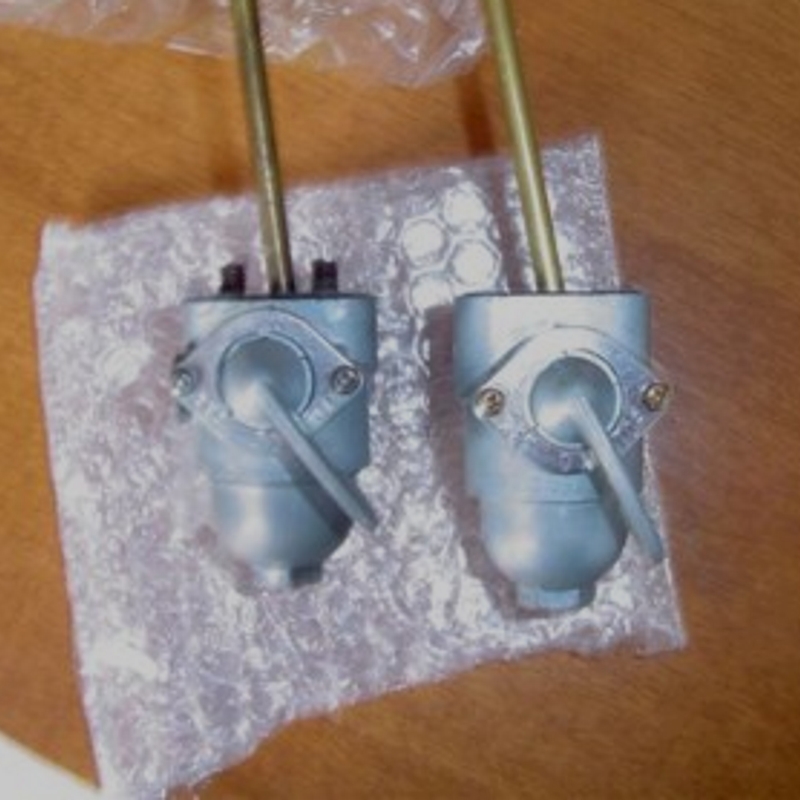

Body height increased to compensate for raised tank underside.
Click Image to Zoom
Click Image to Zoom
Click Image to Zoom
Click Image to Zoom
Click Image to Zoom
10
Tank, Comp Assy
1 - 410 (?)
17500-300-020

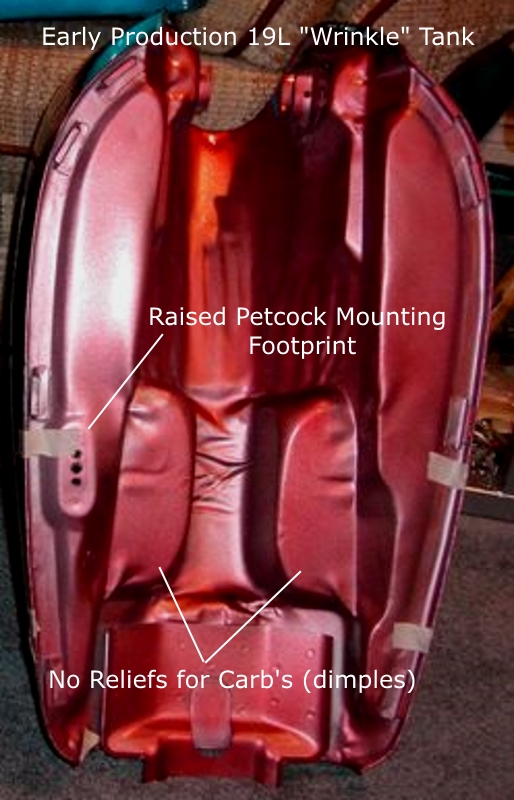

Early "19 litre" tank
10
Tank, Comp Assy
411? - 1937 (?)
17500-300-020

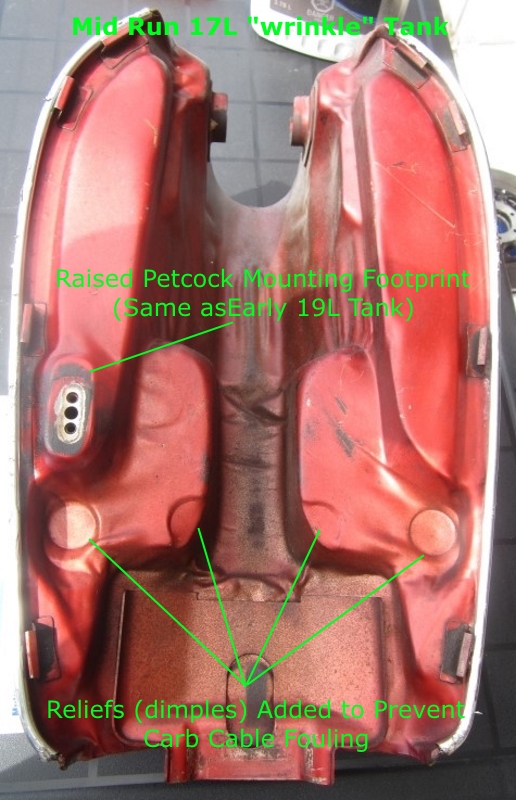

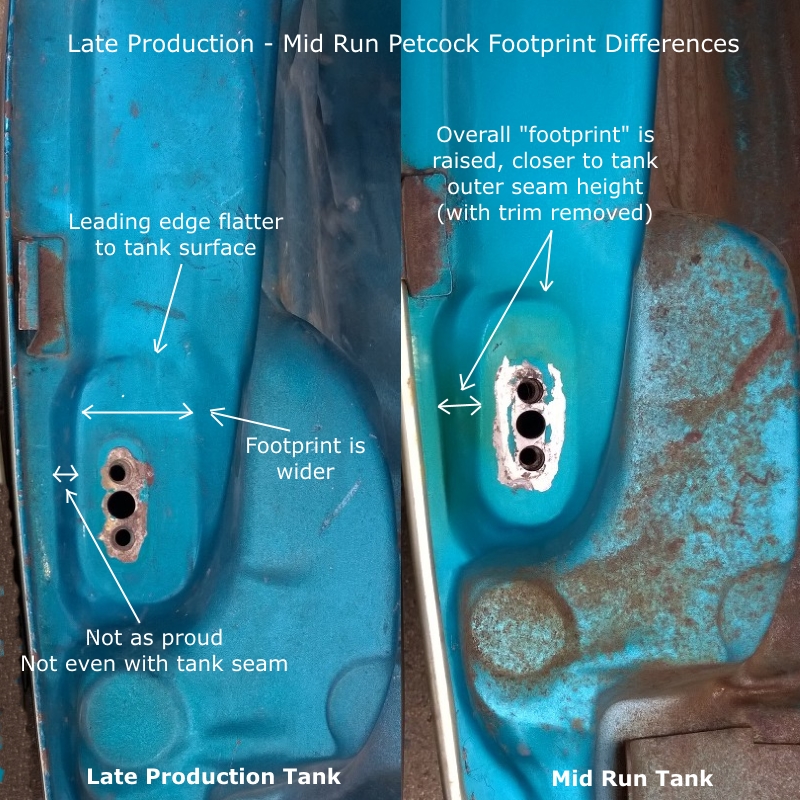

Mid run "17 litre" tank
10
Tank, Comp Assyl
1938 (?) - last sandcast frame - VIN unknown
17500-300-020

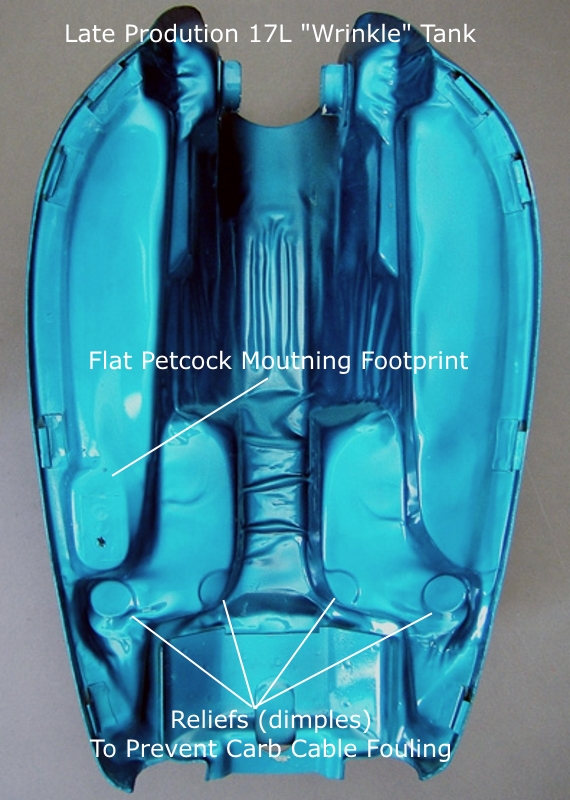

Late "17 litre" tank
Click Image to Zoom
Click Image to Zoom
Click Image to Zoom
Click Image to Zoom
There are at least 3 different castings used for Honda’s early
production fuel caps. We're referring to the early type caps
that have the Phillips head screw holding the seal and breather
plates in place as used on K0 and K1 models.

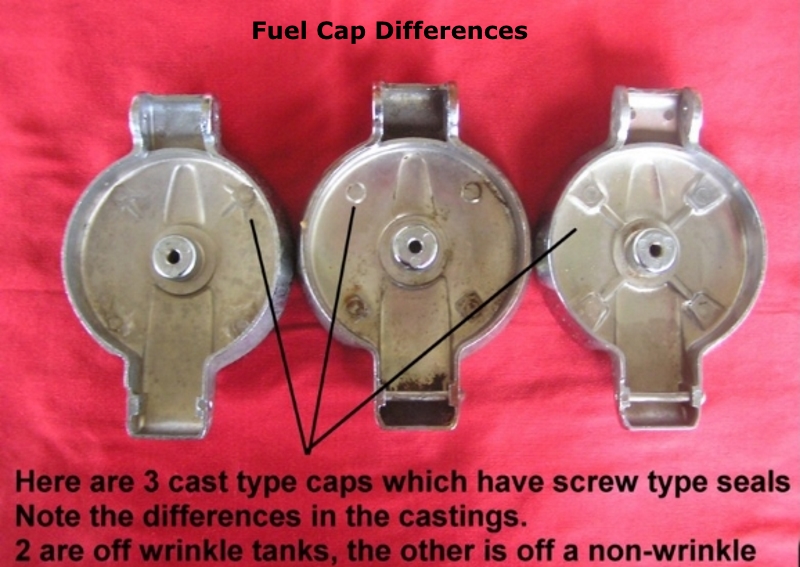

In the first picture 2 of these caps use the
small nylon spacer that goes between the pin and cap where the
cap mounts onto the tank. The third casting type is ever so
slightly narrower than the other two and that small nylon spacer
doesn’t fit when trying to mount the cap. Does this mean that
there is an early cap casting for sandcasts and early wrinkle
tanks?

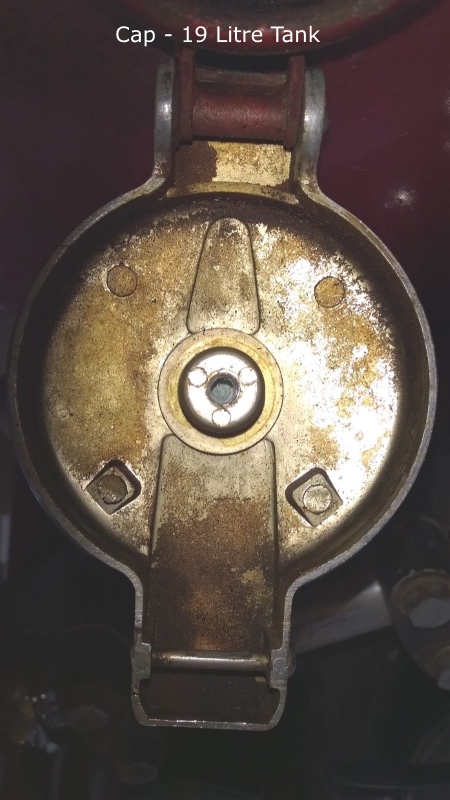

The second image is of a cap from a 19 Litre
tank and shows yet more distinguishable differences in the
casting. More pictures will be added as we investigate the mid
run and late production tank fuel cap differences.
